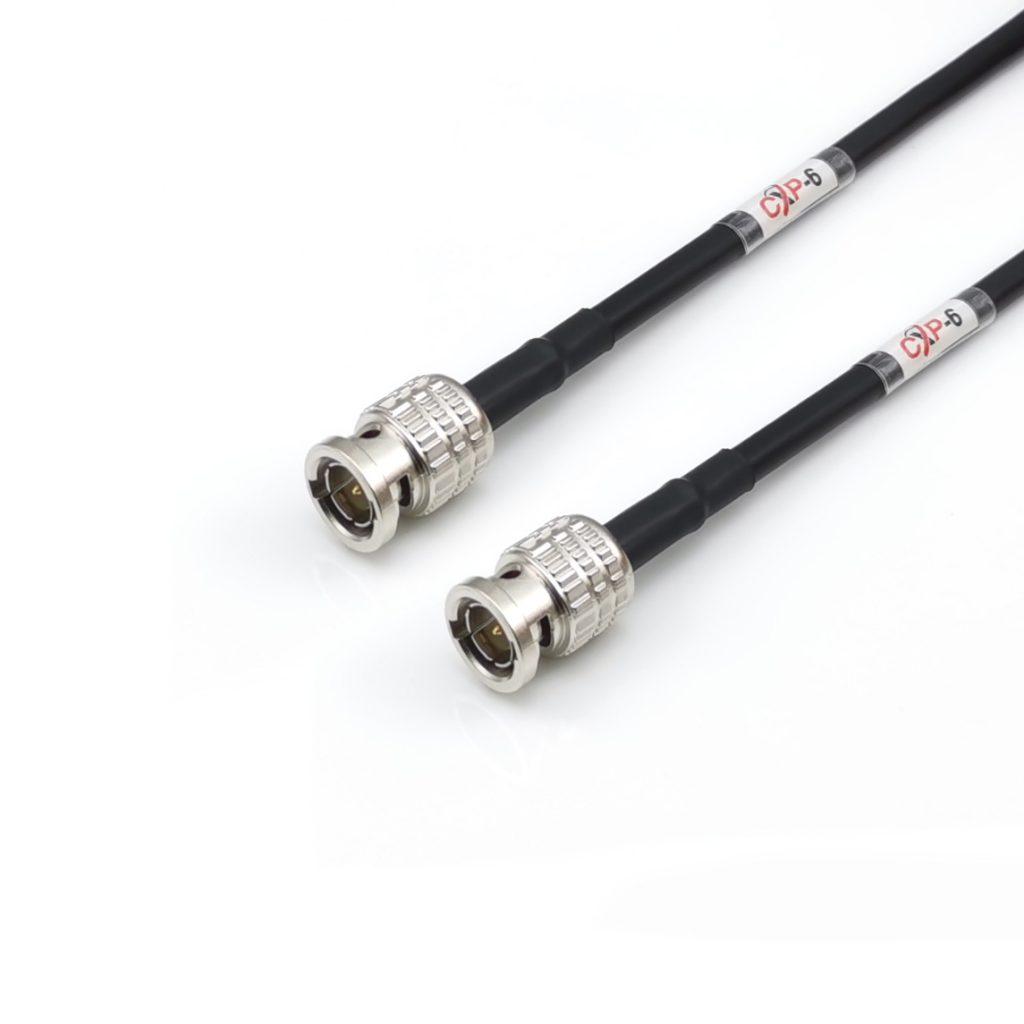

CoaXPress Cable BNC to BNC 6.25Gbps 75ohm

New CoaXPress cable is the leading interface standard for high speed imaging in professional and industrial imaging applications, such as medical imaging, robot vision,broadcast.

Table of Contents

Specification

New CoaXPress cable were developed ad a new leading interface standard for high speed imaging in professional imaging applications, utilizing a single or multiple coaxial cable transmit video and still images. Its has a high speed downlink of up to 6.25Gbps per cable for video images and data, power is also available over the cable.

Standard

CoaXpress

Transmit Speed Max

6.25Gpbs

Installation mode

Static

Install radius (Min)

16mm

Wire gauge

28AWG

Cable OD

4.2mm

Jacket Material

PVC

Connector

BNC-BNC

Operation Temperature

-25°C ~+ 80°C

Max Length

30m

Features

Real-time signals transmission,low latency

High speed data rates: up to 6.25Gbps over a single coax cable.

Low jitter,Hot plug

Precise Triggering capability

Flexible and reliable cable

Cost-effective cabling solutions

Royalty free solution

Application

Industrial imaging

Machine Vision system

Medical Imaging

Life Sciences

Broadcast

Defense.
