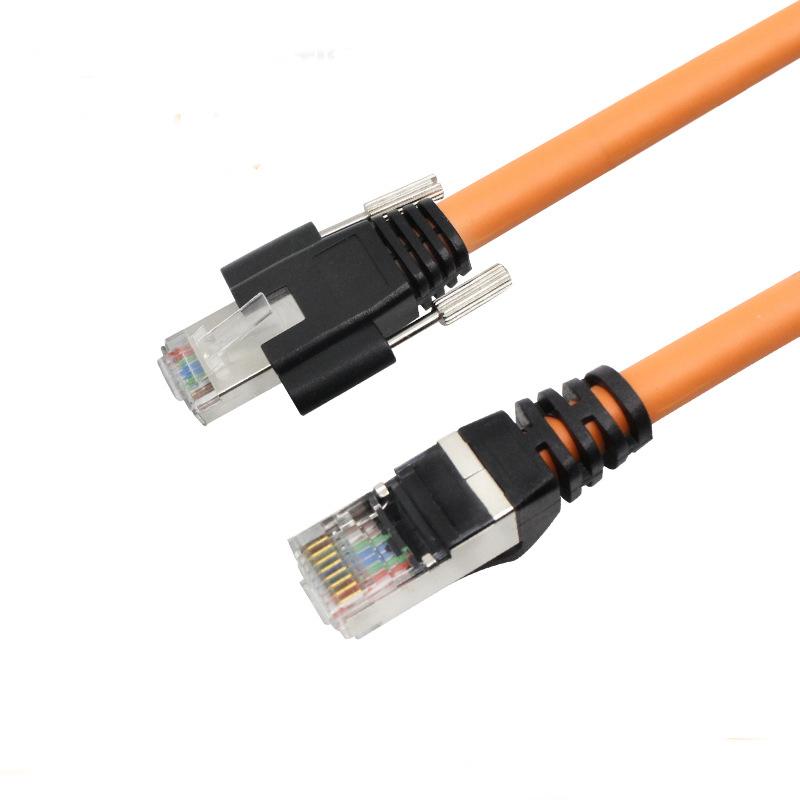

Gigabit Ethernet Cat6 High Flex Shielded Vision Cable

Durable GigE vision cable from manufacturer Himatch, we make Gigabit Ethernet vision cable by plenum rated cat6,cat6a,cat7 high flexible shielded cable with TE or Hirose RJ45 quality connector,robust molded with thumbscrew locking.

Table of Contents

Specification

Durable GigE vision cable from manufacturer Himatch, we make Gigabit Ethernet vision cable by plenum rated cat6,cat6a,cat7 high flexible shielded cable with TE or Hirose RJ45 quality connector,robust molded with thumbscrew locking,provides easy installation small space.They offer outstanding quality and good performance for Gige camera…

StandardGigabit EthernetTransmit Speed Max1000Mbs
Installation modeDynamic/StaticInstall radius (Min)Static: 25mm Dynamic: 50mm
Wire gauge4Px26AWGCable OD6.5mm
Jacket MaterialPVCLift time8-10 millions
Operation Temperature-25°C ~+ 80°CMax Length15m

Features

Reliable Flexible quality cable

Life time: U bending cycles: 10 millions~20 millions

Shielded pairs provide superior signal integrity

Overall foil and braid shielded provides EMI/RFI protection

RoHS and REACH Compliant

Application

CCD camera as following but not only for :Basler ace、Basler aviator、Basler runner、Basler racer、Basler Time-of-Flight series’ model: ACA2500-14GC、ACA640-90GC、ACA1300-60GC、RAL2048-48GM, JAI、AVT’s Guppy Pro, Manta, Stingray, Pike series, Dalsa、Imagingsource
