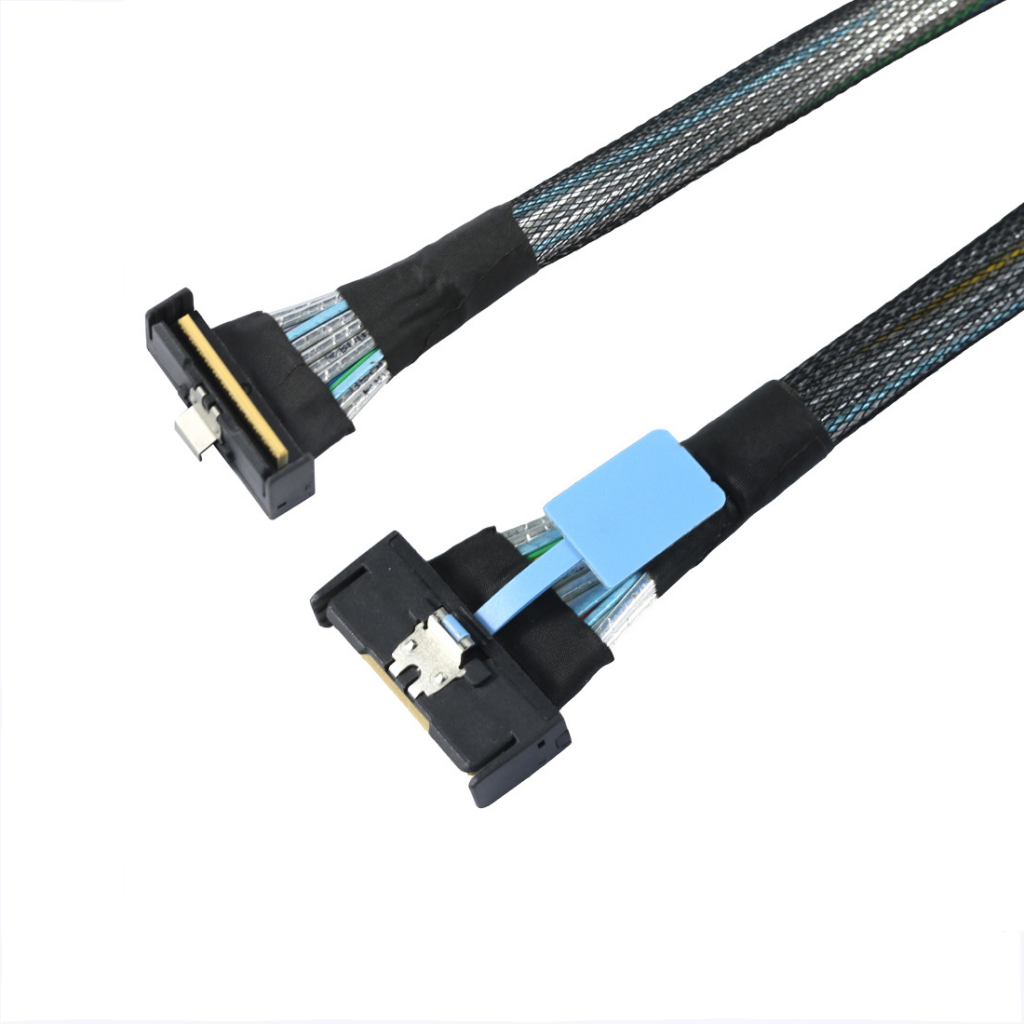

MCIO 8X/74pos to MICO 8X 74pos Right Angel cable with pull tab

MCIO 8X/74pos to MICO 8X 74pos Right Angel cable with pull tab Series: SFF-TA-1016 MCIO Cable Length: 1.0 Meter Signal Wire Size: 30AWG Lock to mating part: With Latch  Plating: Au 30u" min on contact area Pull tab : Yes Connector Color: Black

Table of Contents

Specifications

MCIO 8X/74pos to MICO 8X 74pos Right Angel cable with pull tab
Series: SFF-TA-1016 MCIO
Cable Length: 1.0 Meter
Signal Wire Size: 30AWG
Lock to mating part: With Latch
Plating: Au 30u” min on contact area
Pull tab : Yes
Connector Color: Black
Flammability: PCB UL94V-0, thermoplastic resin UL94V-0

Signal Integrity
1. PCIe Gen4 and PCIe Gen5
2.OCP Standard

Features
1. Pitch 0.6mm connector design, plug with pull tab
2. 1.57mm PCB card thickness compatible with PCIe riser card
4. Supports 85 ohm impedance applications
5. 34-30AWG cables are optional
6. Straight, right angle, side exit and customization cable plug are optional
7. Supports signaling rates up to PCIe Gen5 and PCIe Gen6
8. Compliance to SFF(SFF-TA-1016)m

Mechanical Characteristic
1. Latched Mating Force: 25N Maximum
2. Latched Retention:  50N Minimum
3. Durability : 200 Cycles

Electrical Characteristic
1. Voltage: 30VAC per contact
2. Current: 0.5A per contact
3. Dielectric Withstanding Voltage: 300 VDC minimum for 100 ms
4. Insulation Resistance: 10 MΩ minimum between adjacent pins

Application / Market
1. Data center & Networking Equipment
2. Servers/Storage Devices
3.SAS/SATA/PCIe HBA Interfaces
4. Switches/Routers
5. Wireless Base Stations and Radios

Environmental Compliance
1. RoHS2.0: Compliant
2. China RoHS: Yes
3. REACH SVHC: Yes
4. Low-Halogen Status: Not Reviewed
