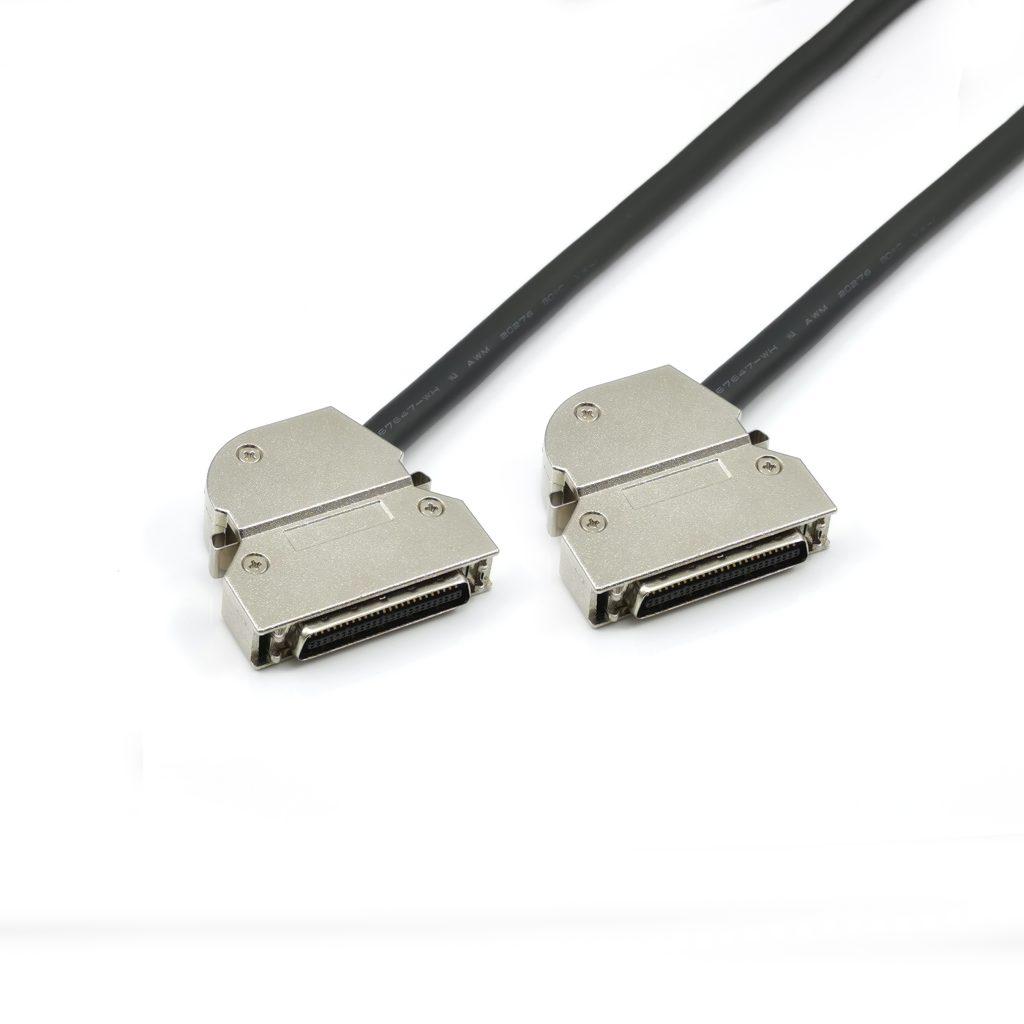

MDR 50pin cdata Cable Metal Connector with Spring Latch

MDR 50pin cable (Mini D Ribbon) constructed by UL 20276 25pair 28awg Shielded Cableand MDR 1.27mm 50pin connector. Zinc Die cast cover and Quickly release latchesoffer easy connection. They offer outstanding quality and high Performance ofdata transmission

Table of Contents

Details

MDR  50pin cable (Mini D Ribbon)made by China Manufacturer, The cable constructed by UL20276 25pair 28awg Shielded Cable and MDR 1.27mm 50pin connector. Zinc Die castcover and Quickly release latches offer easy connection. They offer outstandingquality and high Performance of data transmission..

Cable25Px28awgConnectorMDR50pos
ConductorTinned CopperInsulationPVC
JacketPVCCable OD8.5mm
ColorBlack / BeigeVoltage30V
Operation Temperature-25°C ~+ 80°CCertificationUL/CSA

Features

360 degreeshield with copper foil

100% electronically tested for functionality

Low noise and good performance in skew

Shielded pairs provide superior signal integrity

Application

IndustrialComputer
Older scanners,controllers

ExternalSCSI device cases.
Supports dataspeeds up to 320 MBPS

Supports LVD & HVD
