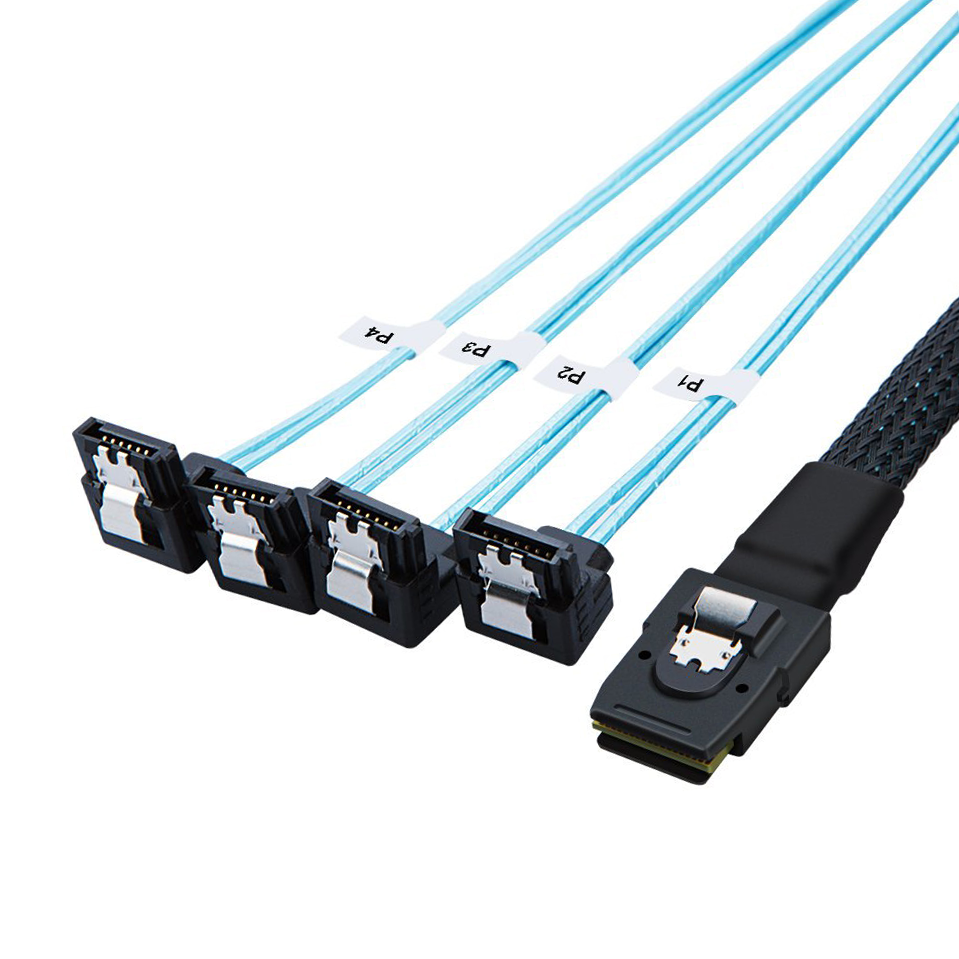

MINI SAS SFF-8087 to 4 Angled SATA server cable

MINI SAS SFF-8087 to 4 Angled SATA server cable Series: Internal Mini SAS HD  Cable Length: 1.0 Meter Signal Wire Size: 30AWG Lock to mating part: With Latch  Plating: Au 30u" min on contact area Connector Color:Black Environmental Compliance: RoHS

Table of Contents

Specifications

Product Description: MINI SAS SFF-8087 to 4 Angled SATA server cable
Series: Internal Mini SAS HD
Cable Length: 1.0 Meter
Signal Wire Size: 30AWG
Lock to mating part: With Latch
Plating: Au 30u” min on contact area
Connector Color:Black
Environmental Compliance: RoHS
Flammability: PCB UL94V-0, thermoplastic resin UL94V-0

Features
1. Compliance with SFF- 8087 standards
2. Small size design: pitch 0.8mm
3. 36pos and 68 pos connector type, and support straight, right angle and side exit
4. Design for SATA & SAS Application

Mechanical Characteristic
1. Mating force:  55.5N maximum
2. Un-mating force: 49N maximum
3. Cable Durability cycles: 250 cycles minimum

Electrical Characteristic

1. Voltage: 30VAC per contact
2. Current: 0.5 A per contact
3. Dielectric Withstanding Voltage: 300 VDC minimum for 100ms
4. Insulation Resistance: 10 MΩ minimum between adjacent pins

Application / Market
Switch, Router, Servers
Storage, RAID Systems
External Storage Data Systems
SAS/SATA/PCIe HBA Interfaces
Direct Attached Storage (DAS)
