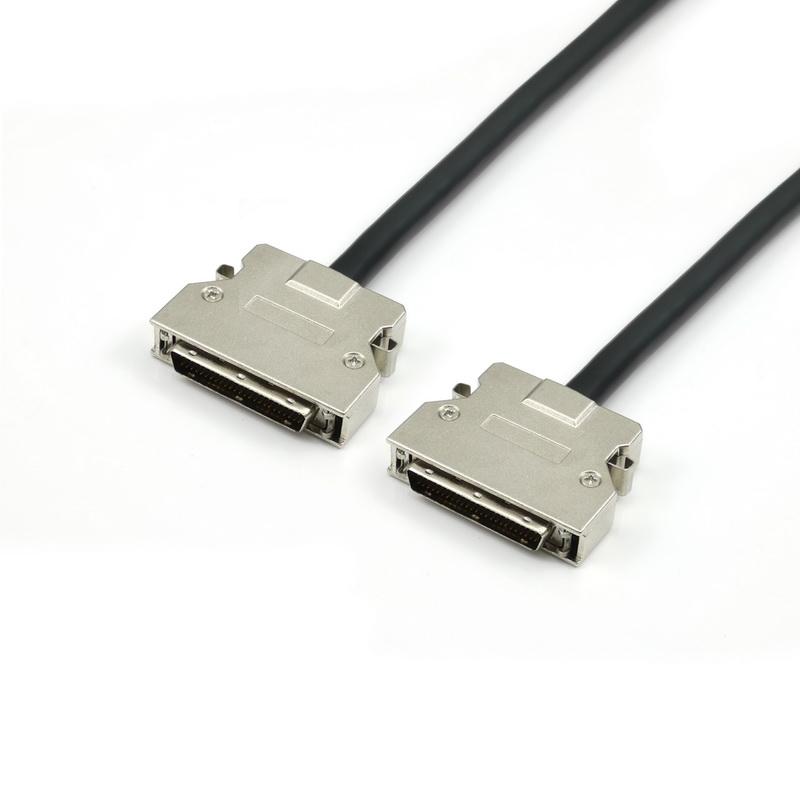

SCSI 50pin Cable Assembly Pin Type Cable Metal Connector with Spring Latch

SCSI50pin Data cable RoHS and REACH compliant.The cable constructed by UL 2027625pair 28awg Shielded Cable and 1.27mm SCSI 50pin connector. Metal cover andQuickly release latches offer easy connection. They offer outstanding qualityand high performance

Table of Contents

Details

SCSI 50pin Data cable maker from China, The cable constructed by UL20276 25pair 28awg Shielded Cable and 1.27mm SCSI 50pin connector. Metal coverand Quickly release latches offer easy connection. They offer outstandingquality and high performance…

Cable25Px28awgConnectorHPDB 50pos
ConductorTinned CopperInsulationPVC
JacketPVCCable OD8.5mm
ColorBlack / BeigeVoltage30V
Operation Temperature-25°C ~+ 80°CCertificationUL/CSA

Features

360 degreeshield with copper foil

100% electronically tested for functionality

Low noise and good performance in skew

Shielded pairs provide superior signal integrity

Application

IndustrialComputer
Older scanners,controllers

ExternalSCSI device cases.
Supports dataspeeds up to 320 MBPS

Supports LVD & HVD
