Detail Specification

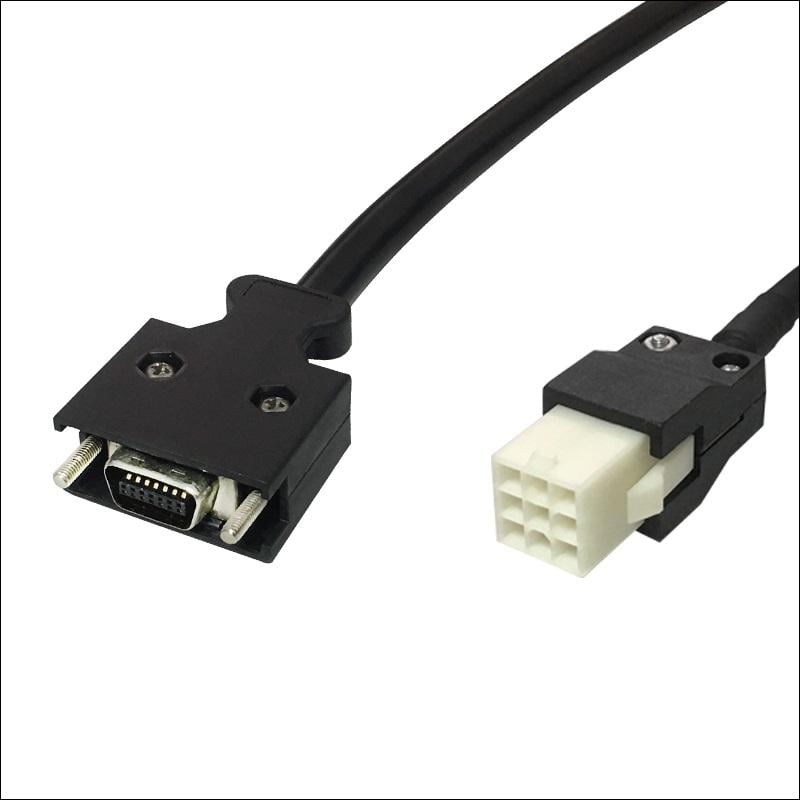

Connector | TE FL-9Y SDR MALE 14P MALE |
Cable | 26AWG*7P+26AWG*1C+AB, PVC, OD= 8.0mm flexible cable for drag chain |
Color | Black, Green. |
Length | 1M,3M…30M. (Customizable) |
Electrical characteristics | Contact current rating: 5 A |
Dielectric withstanding voltage:500V ACC | |
Insulation resistance: 1MΩ/Mind | |
Contact resistance: 5Ω/Max | |
Operation temperature: -25℃～+85℃ | |
Feature | Pure copper double stranded cable |
Double shield (braided copper) | |
Ten million times to drag the chain | |
Application | Servomotor encoder |
Environmental standards | RoHS & REACH compliant |
