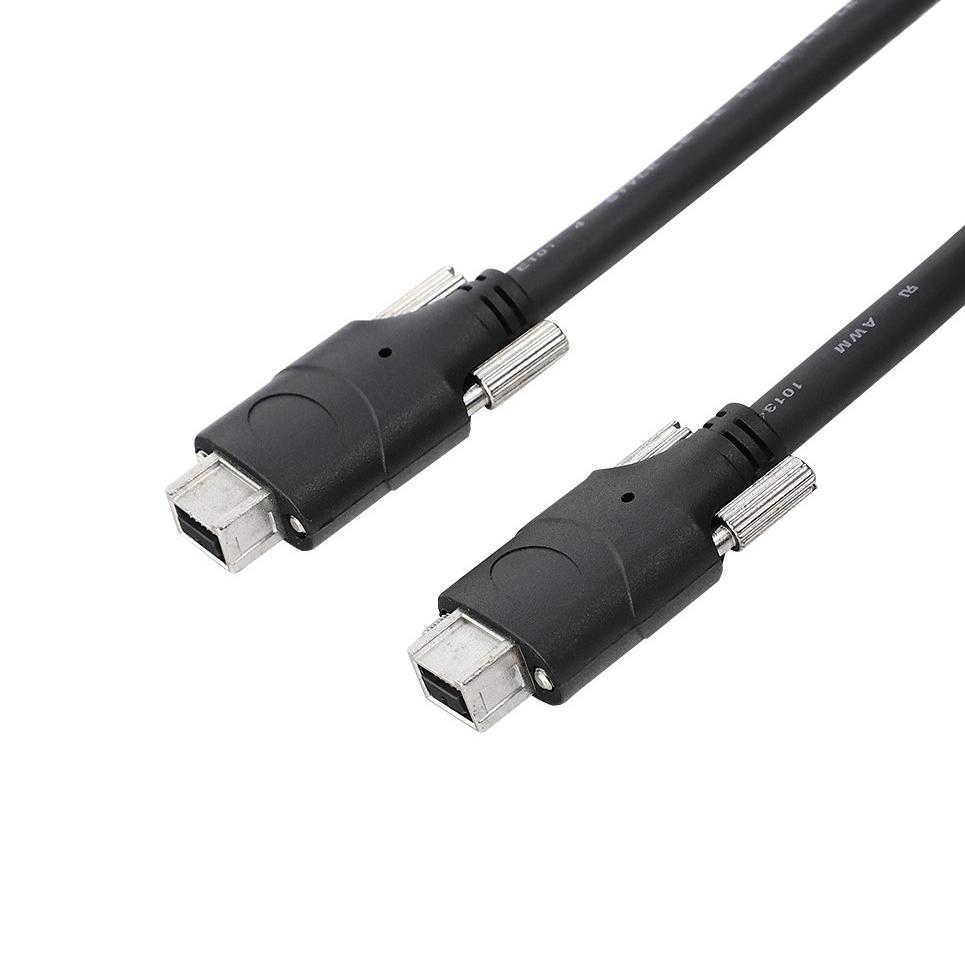

IEEE Firewire 1394 B 8m Chainflex Vision Cable

Quality 1394b to 1394b vision cable constructed by plenum rate shielded cable and UL verified IEEE 1394 connectors on both end, robust molding with thumbscrew. They offer outstanding quality and high performance 800Mbps for 1394 cameras.

Table of Contents

Specification

Quality 1394 Vision cable manufacturer from China, Himatch constructed the cable by plenum rate cable and UL verified IEEE 1394 B connectors on both ends, robust molding with thumbscrew. They offer outstanding quality, durability and high performance 800Mbps for machine vision 1394 cameras.

Feature.



Standard

IEEE 1394

Transmit Speed Max

800Mpbs

Installation mode

Dynamic/Static

Install radius (Min)

Static : 28mm; Dynamic :56mm

Wire gauge

26AWG

Cable OD

7.1mm

Jacket Material

PVC

Connector

1394b 9pin

Operation Temperature

-20°C ~+ 80°C

Max Length

10m

Full speed transmit 400Mbps,800Mbps

Durable Flexible cable

100% electronically tested for functionality

Double shielded braid + foil design protect EMI/RFI

RoHS and REACH compliant

Application

IEEE 1394 Cameras

Industrial Digital camera

Scanner

Graphic Cards.
